HH1004 100HP 4WD Low-profile Tractor

1. Powerful Four-Cylinder Engine + Multi-Speed Output, Capable of Pulling All Implements:

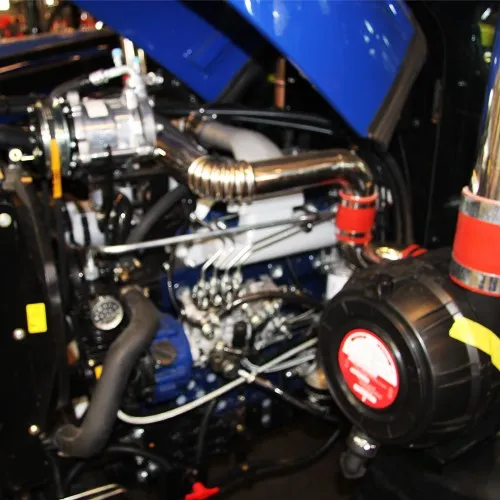

Equipped with a 74kW China III Standard Emission Standard four-cylinder engine, the PTO shaft delivers over 63kW at a rated speed of 2400rpm, effectively giving the tractor a "high-performance engine" – plowing with plenty of power without stuttering, and operating with a seed drill with stable speed, eliminating power fluctuations and missed seeding. Even more practical, it supports two multi-speed outputs: 540/720 or 540/1000rpm. The low speed of 540rpm is suitable for driving heavy implements (such as deep tillage plows), while the high speed of 720/1000rpm is suitable for seed drills and plant protection devices. This allows one tractor to cover the core early stages of "ploughing, planting, and management" without having to change tractors, making it particularly suitable for farmers with a variety of implements.

2. Short Wheelbase + Wide Adjustable Track, Perfect for Small Fields:

To address the common challenges faced by small and medium-sized farmers with small fields and dense ridges, the tractor features a short 2110mm wheelbase design. This reduces the turning radius by one-third compared to long-wheelbase models, eliminating the need to reverse in narrow and terraced fields, thus minimizing ridge damage. The front and rear track can be flexibly adjusted between 1200 and 1600mm: the narrow track (1200mm) is suitable for navigating fields with closely spaced ridges, while the wide track (1600mm) provides increased stability for larger fields. Combined with 4×4 four-wheel drive and a lightweight 3000kg chassis, the tractor can navigate even small terraced fields in mountainous areas without slipping or sinking in muddy terrain, resolving the problem of large tractors being unable to access small fields.

3. Dual Hydraulic Valves + Strong Lifting Force for Fast and Accurate Implement Connection:

Equipped with two independent hydraulic output valves, the tractor is like having a dual power port, allowing simultaneous connection of two implements (e.g., a rotary tiller in front and a fertilizer spreader in the rear), eliminating the need for repeated disassembly and assembly, saving time. Forced hydraulic adjustment plus position/float control allows precise control of implement depth during operation. For example, when plowing, the machine automatically maintains the set depth, eliminating uneven plowing depth due to uneven terrain. When operating a crop protection sprayer, float control keeps the nozzle close to the ground, preventing spray waste. The CAT2 rear three-point linkage with over 20.2kN of lifting force allows even heavy plows to be easily lifted. It is compatible with over 90% of small and medium-sized agricultural implements on the market, without requiring additional modification.

4. Fourth, a variety of narrow tires and symmetrical gear shifts make it easy for beginners to operate:

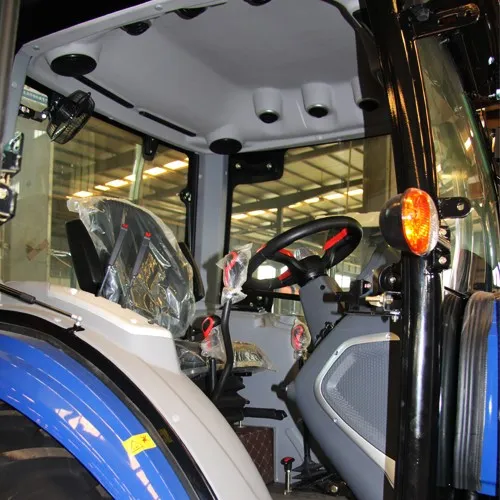

Recognizing that narrow tires are often required for crossing ridges in small and medium-sized fields, the machine comes standard with narrow tires (8.3-24/14.9-30 mm). Wide tires (9.5-24/16.9-30 mm) are also available (suitable for heavy clay soils) or ultra-narrow tires (8.3-20/12.4-28 mm) are also available. Whether working on sandy soil, muddy soil, or terraced fields, the machine can be fitted with suitable tires. The symmetrical 12F+12R gear shift design is particularly convenient, with corresponding forward and reverse gears, eliminating the need for beginners to memorize gears. For example, "1st forward is on the left front, 1st reverse is on the left rear," making it easier to shift into the wrong gear. A simple cab or air brakes can also be added to provide protection from the sun in summer and rain in rainy weather. Air brakes provide safety when pulling implements on the road, making long hours of work less tiring and lowering the operating barrier for small and medium-sized farmers.
