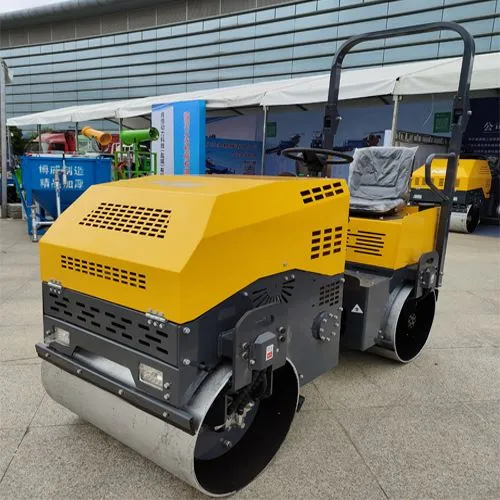

Products Parameter
| Parameter | Value |
|---|---|
| Product model | HR1500 |
| Speed | 0-8 km/h |
| Vibration frequency | 65 Hz |
| Drive mode | Hydraulic dual drive |
| Starting method | Electric start |
| Excitation force | 25 KN |
| Water tank capacity | 55 L |
| Engine power | 192 diesel engine / 13HP |
| Steel wheel size | φ530×800 mm |
| Climbing ability | 30% |
| Operating weight | 1500 kg |
| External dimensions | 1970×900×2100 mm |
| Vibration control | Hydraulic vibration |
Products advantages
Air - Cooled Durability
Eliminates the need for coolant refills and avoids leakage risks
maintaining peak operation in hot and remote job sites without any drop in performance.
Hydraulic Drive Stability
Synchronized power transfer between the drums ensures steady maneuvering on slopes
reducing material slippage during crucial compaction stages.
Effortless Electric Start
Push - button ignition replaces manual cranking, simplifying the start
of the work process and reducing physical strain during repeated use.
Robust Structural Build
Reinforced steel components and anti - corrosion coatings can resist wear from abrasive
materials (such as crushed stone), extending the service life in harsh working conditions.
Adaptive Vibration Control
Hydraulic - powered vibration can adjust to the density of different materials
achieving uniform compaction for both loose aggregates and compacted asphalt
without over-stressing the surfaces.
