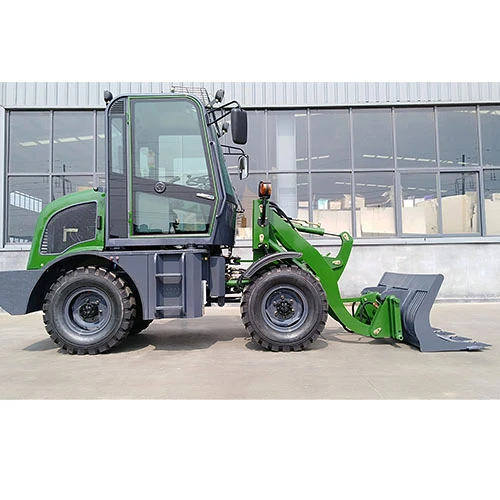

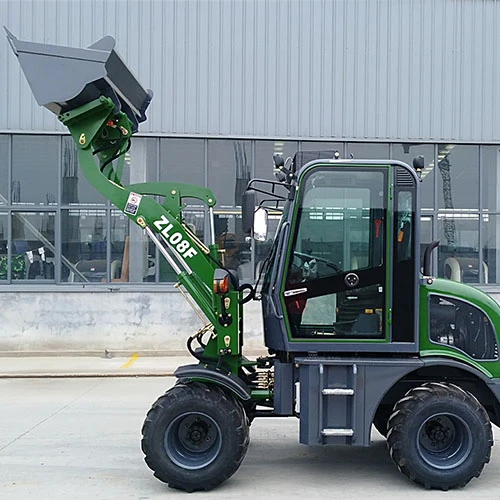

Four-wheel Drive Loader

The following is a product introduction for the Four-Wheel Drive Loader: It's equipped with a Changchai EURO5 engine, rated at 18.8 kW at 2400 rpm. It features four-wheel drive with a torque converter, a 0.4 m³ bucket (1520 mm wide), a breakout force of 28 kN, and a rated load of 800 kg. It also features an 1850 mm wheelbase, a 2300 mm dump height, and four-wheel hydraulic brakes, making it suitable for loading and unloading operations in small and medium-sized sites.

Send Inquiry

Product size parameters:

Category	Item	Specification
Performance	Rated Load	800kg
	Operating Weight	2850kg
	Overall Dimensions	4430×1550×2585mm
	Wheelbase	1850mm
	Track	1285mm
	Dumping Height	2300mm
	Drive Means	Four-wheel drive
	Driving System	Torque converter
Engine	Model	Changchai EURO5 Engine
	Rated Power	18.8kw
	Rated Speed	2400 r/min (rpm)
	Engine type	In-line arrangement, water-cooled, four-cycle diesel engine
Bucket	Bucket Capacity	0.4m³
	Bucket Width	1520mm
	Bucket type	Heavy-duty bolt on teeth
	Max. Breakout Force	28KN
Brake System	Service Brake	Four Wheel Hydraulic spread-shoe brake
Brake System	Parking Brake	Hand operated
Tyre	Model	8.25-16

Products advantages:

Powerful Power and Efficient Operation

Equipped with a Changchai EURO5 engine rated at 18.8 kW and 2400 rpm, the inline, water-cooled, four-stroke engine ensures stable power output. Combined with a torque converter transmission, it efficiently drives a 0.4 m³ heavy-duty bolt-on bucket, achieving a maximum breakout force of 28 kN, meeting the needs of loading and unloading small and medium-sized materials.

Flexible, Stable, and Highly Maneuverable

Equipped with four-wheel drive, an 1850 mm wheelbase and a 1285 mm track, combined with compact dimensions of 4430 × 1550 × 2585 mm, the machine operates flexibly in confined areas. 8.25-16 tires provide reliable grip, adapting to various terrain conditions and ensuring stable operation

Heavy-duty Design and Efficient Unloading

The bucket width of 1520 mm, combined with a standard bucket capacity of 0.4 m³, provides ample capacity for a single load. The 2300mm dump height accommodates most transport vehicles. The heavy-duty bolt-on tooth structure enhances digging capacity, improves material loading and unloading efficiency, and reduces trips.

Safe, Reliable, and Durable Braking

Equipped with four-wheel hydraulic shoe-type service brakes, braking force is responsive and uniform, while the 2850kg operating weight ensures reliable braking. The manually operated parking brake system provides reliable hill-slip protection. The overall braking configuration ensures safe operation in all operating conditions.
